Promoting Renewable Energy

• Expanding the Use of Renewable Energy
• Operating Solar Power Generation Systems
• Use of Renewable Energy at More Data Centers

Expanding the Use of Renewable Energy

Since April 2020, we have been proactively introducing and expanding the use of renewable energy, including virtual renewable energy through non-fossil fuel energy certificates. In fiscal 2022, 42 out of 85 telecommunications facilities and data centers fulfilled all their power needs with renewable energy, and in fiscal 2023 our efforts to expand the use of renewable energy continue.

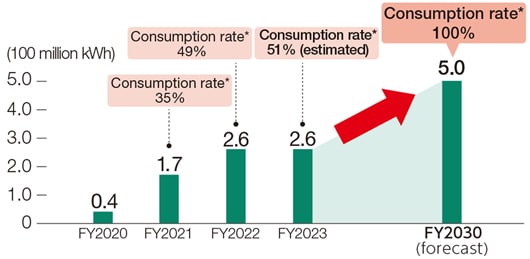

◆ Consumption rate of electricity derived from renewable energy sources (including virtually renewable energy through non-fossil fuel certificates)

Scope: NTT Communications Corporation and 17 Group companies

* Targeted GHG protocol out of GHG emissions from business activities: Electricity consumption in Scope 2

Operating Solar Power Generation Systems

Since 2009, NTT Communications has been engaged in power generation using solar power generation systems at its telecommunications facilities and data centers in Tokyo (six system units are currently in operation) to generate electricity to power lighting in common spaces. In fiscal 2022, we generated approximately 491,000 kWh of solar-powered electricity. This amounts to 213.0 t-CO₂ when converted to CO₂ emissions and is equivalent to the volume of CO₂ absorbed in a year by around 24,200 cedar trees.

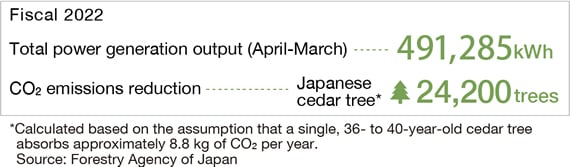

◆ Power Generated by Solar Power in Fiscal 2022

Use of Renewable Energy at More Data Centers

With the expansion of the digital society, demand for power in data centers is increasing year by year. However, while it is possible to improve the energy consumption efficiency of data centers, it is not possible to eliminate power consumption itself.

NTT Communications began using renewable energy at data centers in telecommunications facilities in fiscal 2020, followed by its newly established data center in Tokyo in fiscal 2021. In fiscal 2022, we started offering options that allow customers to use a wide range of renewable energy sources in response to their requests at five data centers in the Tokyo metropolitan area. This enables customers to report on RE100^* and other international environmental initiatives and promote ESG management aimed at decarbonization.

Going forward, we will expand our efforts to spread the use of renewable energy not only inside the Company but also with our customers. In the second half of fiscal 2025, we will start offering services at the new Keihanna Data Center (provisional name) to be constructed in Kyoto Prefecture by NTT Global Data Centers Corporation. Additionally, we are working on a system that will virtually eliminate CO₂ emissions from this data center by using renewable energy according to customer needs.

* An international consortium of companies focused on ensuring that 100% of the electricity used in their business activities will ultimately come from renewable energy sources.

Improving Energy Efficiency

• Initiatives at Our Data Centers
• Using our Data Center Know-How to Control Airflow: Airflow Improvement
• Efficient Power Supply by Leading-Edge Technologies
• Advanced Cooling Solutions for Cutting-Edge Servers
• LEED Certification

Initiatives at Our Data Centers

An important aspect for reducing power consumption at data centers is increasing the efficiency of air-conditioning. We are introducing the following innovations from the data center design stage and gradually replacing conventional electricity generated by fossil fuels by increasing the ratio of renewable energy sources that do not emit GHG, such as wind, hydro, solar, and geothermal power.

(1)Innovation in Buildings

To increase the heat insulation of buildings we are working to improve efficiency from the structural aspect, such as by adopting innovations that utilize thick concrete panels and insulation materials and by reducing the window surface area. With regard to air-conditioning, we are absorbing heat such as that generated by the IT equipment in rooms, liquefying the refrigerant cooled by the convection force of heated refrigerant rising as gas and by outside air, using the downward convection force from the difference in height of the equipment, and taking advantage of a natural refrigerant circulation system to use power sources and pumps as little as possible. These technologies are used in combination at the Tokyo No. 5 Data Center and are bringing about a reduction in CO₂ emissions.

(2)Innovation in Server Rooms

Depending on the location, temperature differences occur in a server room as the amount of heat generated in a server room depends on the various types of server installed. While effectively eliminating this, efficient cooling is important in curbing CO₂ emissions. To achieve this at our data centers we are implementing finely tuned air-conditioning management innovations. For example, we have introduced the SmartDASH^*1 automatic air-conditioning control system, installed the Aisle Capping^*2 airflow control solution, which increases the rectifying effect of the cool air, and the Blank Panel system, which is capable of efficiently cooling servers by utilizing the cool air trapped in the spaces between the server racks.

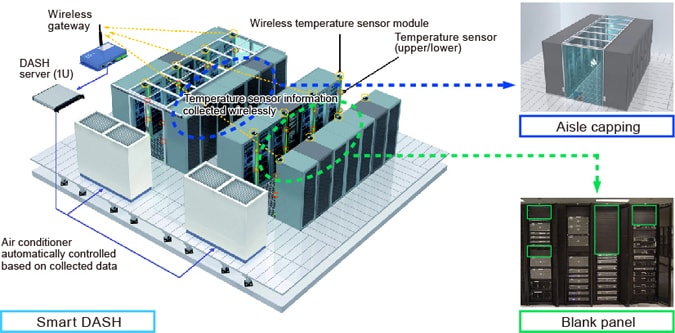

Since fiscal 2012, we have accelerated our efforts to create server rooms with total solutions entailing both hardware and software for air conditioning management. As only a leading ICT company can, NTT Communications promotes energy-saving solutions throughout the Group by proactively implementing these solutions in its regional data centers and telecommunications buildings.

*1 Depending on the country and region, SmartDASH is a registered trademark or trademark of Vigilent Corporation.

*2 Depending on the country and region, Aisle Capping is a registered trademark of NTT Facilities, Inc.

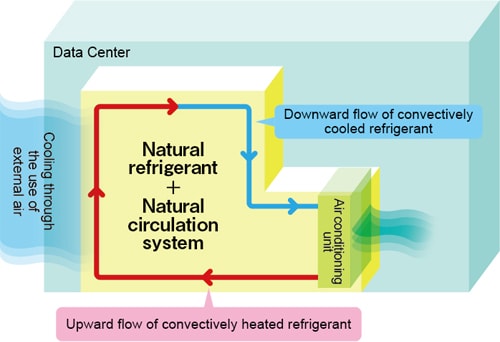

(3)Deployment of a New Air Cooling System

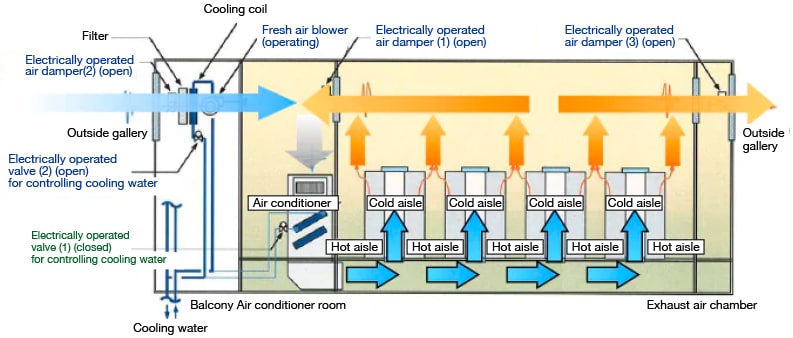

At our Tokyo 6 Data Center, we have deployed an external air cooling system that draws cooler outside air into a building during winter, spring, and autumn.
Rows of servers, networking equipment, and other ICT equipment in data centers generate significant heat, and the external air cooling system effectively cools the DCs using much less energy.
At our new Tokyo 11 Data Center located in Musashino City, Tokyo, we adopted an indirect evaporative cooling system capable of switching to the most efficient heat exchange method according to the season, which enabled us to reduce energy usage by about 60% compared to conventional air conditioning. We also installed shorter indoor air ducts to reduce ventilation loss, which led to greater efficiency in cooling heat generated when supplying mean effective power of 8 kW per rack. We will continue incorporating advanced equipment and technologies to aggressively reduce the carbon footprint of our data centers.

Tokyo No. 6 Data Center: High-efficiency modular chillers

(4)Complete Airflow Management

The arrangement of hot aisles and cold aisles as pathways for hot and cold airflow is an issue that can significantly impact the efficiency of a building's air conditioning system. To realize optimal airflow management, we have innovated literally from the ground up by redesigning the floors of our data centers. These innovations include panels that vent chilled air circulated under a false floor, horizontal air conditioning that blows air from the walls into the room, large fans on the walls near the ceiling to efficiently move hot air out of the room, and an exhaust chamber. By combining these innovations with fresh air air-conditioning systems, we aim to create optimal airflow throughout the entire building.

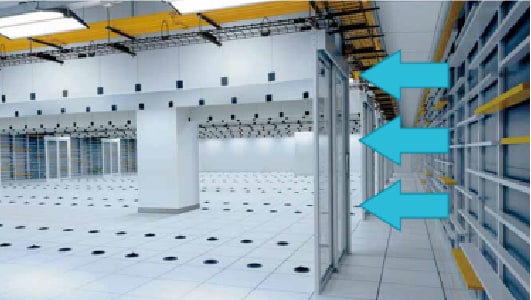

Airflow management at the Tokyo No. 6 Data Center

Using our Data Center Know-How to Control Airflow: Airflow Improvement

We are applying the knowledge we have gained through our decarbonization efforts at our data centers to our telecommunications facilities. For example, we have been improving airflow since fiscal 2011 in the communications equipment rooms of our communications buildings in each region.

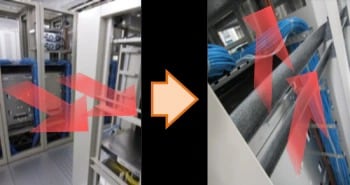

• (1) Diffuser (wind direction panel) installation
  Diffusers are installed to direct exhaust heat from the rear of ICT equipment upward and away from other devices.



• (2) Screen Installation
  Screens are installed to ensure that the exhaust heat from various equipment does not flow onto other devices.

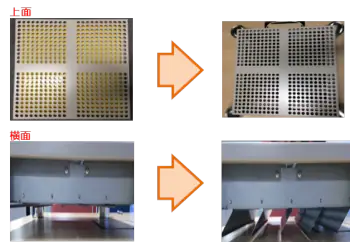

• (3) Floor panel improvement
  熱Steps taken to confirm heat accumulation and points of excessive cooling and improvements made through adjustments using retractable fins, curing tape and other items to control underfloor air flow.



• (4) Drawstring bag application
  Drawstring bags are applied to prevent the leakage of cold air.





We expect these initiatives to have a greater impact as we gradually expand these measures to other facilities around the world, and apply this expertise to energy management for office buildings.

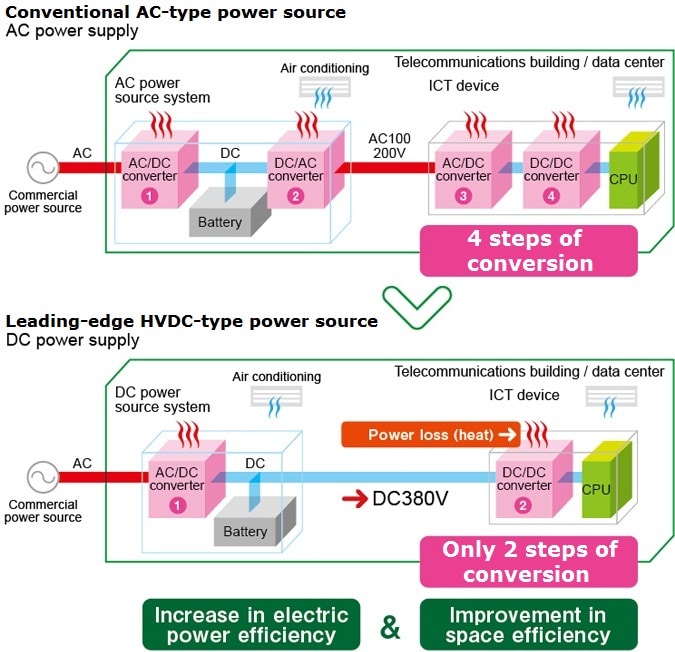

Efficient Power Supply by Leading-Edge Technologies

The current widely used alternating current (AC) power supply requires large numbers of AC/DC converters for supplying power to equipment and is therefore subject to significant efficiency issues, such as heat release and power loss. The former use of low-voltage direct current (DC) power supply raised many issues from the perspective of building work and cost since DC requires thick cabling to supply power to high-capacity IT equipment. The high-voltage direct current (HVDC) system is therefore attracting attention as a means for rapidly resolve these issues. As of January 2022, HVDC systems have been installed at approximately 1% of the roughly 500 DC power supply systems at telecommunications facilities owned by NTT Communications. We plan to introduce the system at around 50% of facilities by fiscal 2030 by phasing in the expansion to align with facility upgrades and measures for raising the efficiency of telecommunications equipment. Introducing this system represents a positive step toward realizing such improvements as a 20% reduction in power consumption and a 40% improvement in space efficiency.

Advanced Cooling Solutions for Cutting-Edge Servers

In fiscal 2024, we will launch Green Nexcenter™, a service that supports the use of liquid-cooled equipment in ultra-energy-saving data centers. The service will reduce the power used for cooling energy-intensive servers that run ChatGPT and other generative AI, which generates considerable heat, by approximately 30% compared to conventional data centers.

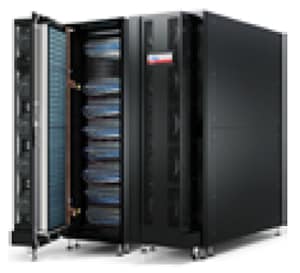

◆ Rear door cooling system with heat exchanger installed on the rear door of the rack for higher server rack densities

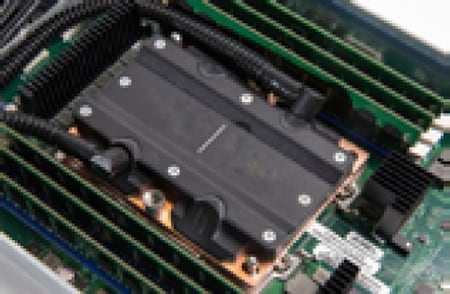

◆ Liquid cooling system with circulating chilled water from an outdoor cooling tower to
the servers via tubes on metal plates in contact with the processors of the servers

LEED Certification

To support global customers in reducing their environmental impact, the NTT Group is taking steps to acquire Leadership in Energy and Environmental Design (LEED) certification*, which sets the global standard for green buildings.
NTT Communications contributes to reducing the environmental impact of its customers by using LEEDS-certified data centers operated by NTT Ltd. countries across the globe, which provide both high reliability and excellent environmental performance.
Moving forward, we will collaborate with the NTT Group to increase customer satisfaction by providing data centers that focus on performance and reducing the environmental impact of the Group and ultimately of society as a whole.

*A certification system for the entire building, promoted by the U.S. Green Building Council, which evaluates energy savings and environmental impact.

*NTT Communications pursues its global operations in collaboration with NTT Ltd.

◆ Data Centers with LEED Certificate

Countries and Regions	Data Center	LEED Certificate
Hong Kong	Financial Data Center Tower 2 (FDC2)	Platinum
	Financial Data Center Tower 1 (FDC1)	Gold
	Tai Po Data Center	Silver
Singapore	Serangoon Data Center	Gold
Malaysia	Cyberjaya 3 Data Center	Silver
	Cyberjaya 4 Data Center	Silver
India	Chennai 1 Data Center	Gold
U.S.A.	Sacramento 1 (CA1) Data Center	Gold
	Sacramento 2 (CA2) Data Center	Gold
	Sacramento 3 (CA3) Data Center	Gold
	Ashburn 1 (VA1) Data Center	Gold
U.K.	UK Hemel Hempstead 2 Data Center	Gold

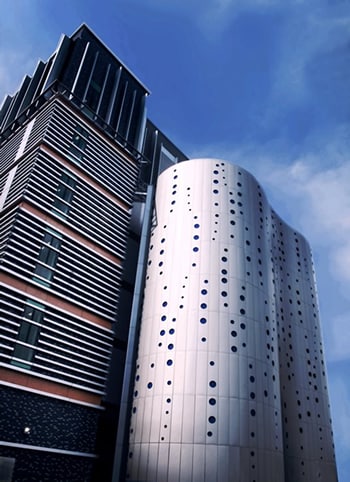

Hong Kong Financial Data Center Tower 2 (FDC2)

Located in Tseung Kwan O on the eastern part of the Kowloon Peninsula, FDC2 employs an innovative front-flow air conditioning cooling wall system and a cooling battery that maintains the temperature of server rooms at around 27°C for about 40 minutes in the event of a power failure.
During cold periods when outside temperatures fall below 10.5°C, certain chillers are also shut down. Steps are then taken to switch to indirect external air conditioning using a heat exchange process with a cooling tower.
FDC2 received the LEED Platinum certification for its highly regarded innovations, which raised its cooling energy efficiency by roughly 20%.

Cooling wall

Increases energy efficiency by 20% compared with conventional cooling methods that employ cold air that flows up from beneath double floors, as indicated by the arrows in the photo.

Cooling battery

Maintains the server room temperature at 27°C for 42 minutes in the event of a power failure using cooling tanks that can store up to 3.6 million liters of cooling water. (White building at right)

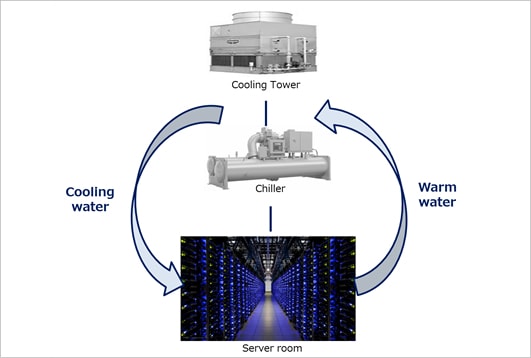

Indirect external air conditioning system

Turning off chillers to conserve power and utilizing cooling water directly from the cooling tower when temperatures fall below 10.5°C.

Saving Electricity in Offices

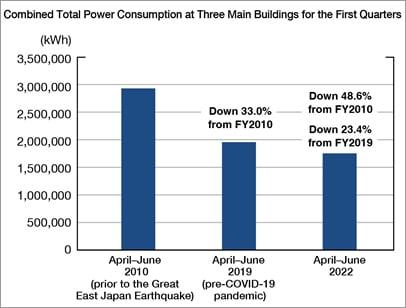

In addition to installing environmentally friendly equipment, the NTT Communications Group is also saving electricity in its offices. For instance, we adjust the temperature settings of air conditioners while considering workplace environments and operating efficiency, optimize the number of lights used, modify the degree of illumination, and encourage employees to switch off office automation equipment when not in use and select energy saving mode as the default setting for PCs to save electricity year-round. Moreover, NTT Communications relocated to Otemachi Place, its new head office building, in January 2019, where it has significantly saved energy compared to its former site at the Hibiya Building. These savings have resulted from such actions as adopting an efficient district heating and cooling system and using motion sensors to control lighting.
Furthermore, as a result of fully implementing the “Remote Work Native” initiative as a new workstyle from March 2020 in response to the COVID-19 pandemic, power consumption at our three main buildings (Otemachi Place, Shiodome Building, and Tamachi Building) for the first quarter of fiscal 2021 (combined total for April to June) declined by 23.0% from fiscal 2019. In fiscal 2021, we adopted a free address floor plan at our offices in the Tokyo area and positioned our staff based on the premise that the number of employees working at the office would be limited to 30%. These measures are part of our Remote Work Native initiative and are expected to further reduce power consumption.

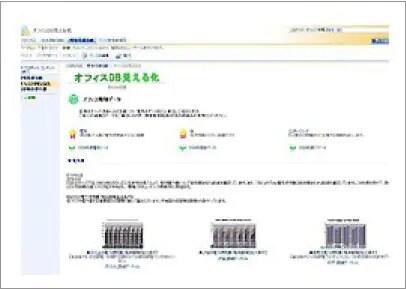

Initiatives using ICT include measures to save electricity in our offices through the Office Database Visualization Website on our intranet, which aggregates and visualizes environmental impact data by floor. NTT Communications plans to decrease its environmental impact by reducing the electricity used to power its servers through integration by migrating internal systems to ICT infrastructure on a private cloud that leverages server virtualization.
In addition, we are shifting to meet our office power needs through renewable energy sources while simultaneously saving electricity to reduce CO₂ emissions. We achieved our zero-emission target for all office power requirements at Otemachi Place, including those of tenant companies, in September 2021.

*Figures for fiscal 2010 represent the combined total for the Hibiya Building (former site of our head office), Shiodome Building and Tamachi Building.

Provide Services that Help Reduce GHG Emissions

• SDPF Cloud/Server (Former Enterprise Cloud): Streamlined Integration of ICT Infrastructure
• Providing CO₂ Emissions Forecasting and Visualization Functions in Our Cloud Service
• Arcstar Universal One Offers an Innovative Way to Work on Mobile Devices
• Reducing Environmental Impact Using the Arcstar IP Voice Service

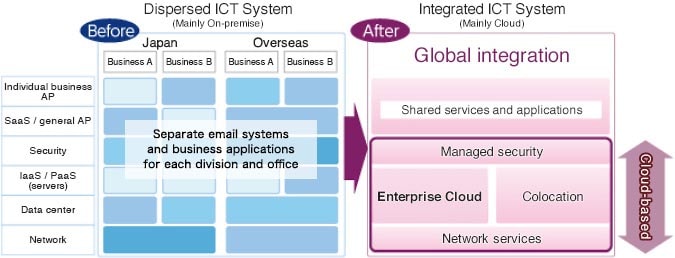

SDPF Cloud/Server (Former Enterprise Cloud): Streamlined Integration of ICT Infrastructure

As companies accelerate overseas expansion through mergers and acquisitions, they are increasingly required to streamline and integrate their ICT infrastructure on a global scale. From an environmental standpoint as well, companies are striving to reduce the wasteful use of resources, especially investments in redundant equipment, throughout the corporate group.
SDPF Cloud/Server is a world-first cloud-based service for corporations that uses virtual network technologies between as well as within data centers. Utilizing cutting-edge virtualization technologies, including virtual servers and networks, SDPF Cloud/Server integrates ICT systems that companies had deployed and operated differently in each region and office. This service makes it possible to deploy an integrated ICT infrastructure that eliminates the wasteful allocation of equipment and personnel throughout corporate groups.

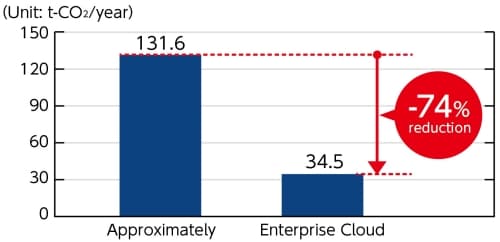

Recent installations have proven the major benefits of this service. When virtual servers are deployed through the service instead of traditional physical servers and storage devices on the customer's premises, the number of physical servers in operation are reduced, thereby cutting CO₂ emissions by 97 t-CO₂ annually (about 74%) in the case of a small or medium-sized company.

Providing CO₂ Emissions Forecasting and Visualization Functions in Our Cloud Service

In our Smart Data Platform (SDPF) Cloud/Server service, which utilizes NTT Communications’ data centers, we started to provide simulation to forecast CO₂ emissions and a dashboard to visualize emissions free of charge in fiscal 2022, the first cloud service provider in Japan to do so. The service allows customers to simulate the emissions reduced by migrating from their conventional on-premise environment to the SDPF Cloud/Server environment and to check the actual volume of emissions on the portal. We will continue to promote efforts to help customers further reduce their environmental impact.

In July 2023, we achieved our goal of making our SDPF Cloud/Server service carbon neutral by the end of fiscal 2023 through the introduction of renewable energy to all our sites. With this service, we support customers in moving their on-premise environments to the cloud while also reducing GHG emissions in their value chains.

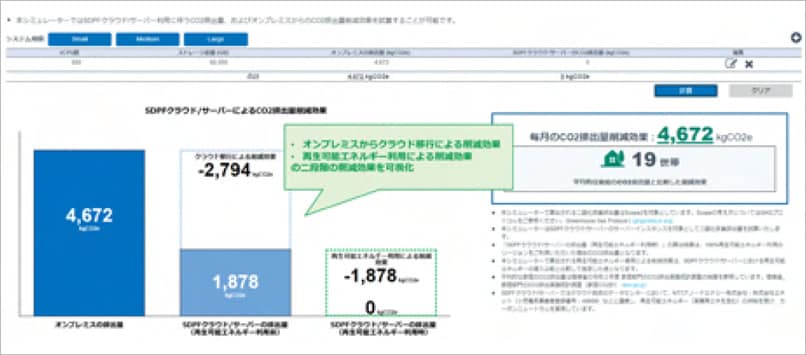

◆ Screen image of the Carbon Footprint Simulation for forecasting CO₂ emissions

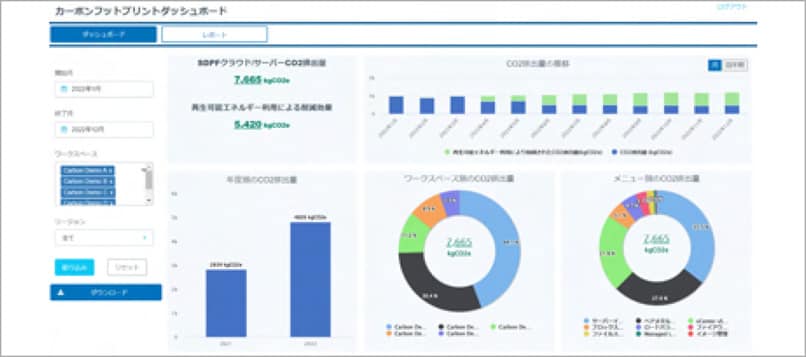

◆ Screen image of the Carbon Footprint Dashboard for visualizing CO₂ emissions

Arcstar Universal One Offers an Innovative Way to Work on Mobile Devices

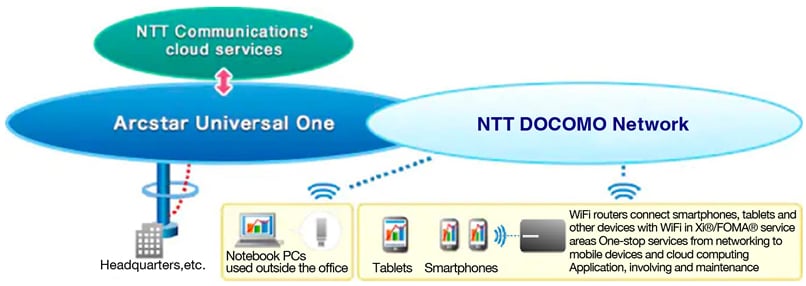

Arcstar Universal One is a virtual private network (VPN) service we offer for corporations that allows employees to securely access corporate systems over high-speed communications from locations outside their company. As a part of our Arcstar Universal One service, we also provide a high-speed data communications environment for mobile devices to connect securely to VPNs. This service expands the range of possibilities for working outside the office, while reducing the need to move in order to work in the office.

Reducing Environmental Impact Using the Arcstar IP Voice Service

IP telephone services that help curtail call charges are also becoming increasingly popular with the widespread use of the Internet. As a high-quality IP telephone service geared toward the corporate sector, Arcstar IP Voice not only contributes to lower call charges, but is also environmentally friendly.
For example, positive steps can be taken to cutback the amount of network infrastructure CO₂ emissions by integrating voice and data communications into a single network. Moreover, and in line with network integration, the opportunity exists to reduce electricity consumption through the upgrading of ICT equipment. Studies have shown that the introduction of Arcstar IP Voice has contributed to an annual reduction of 30% in the amount of CO₂ emissions compared with such conventional means as the use of ISDN networks for voice calls and VPN networks for data communication.

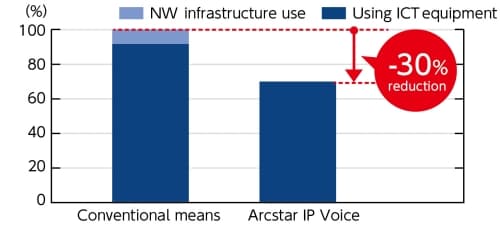

The graph depicts respective percentages with the amount of CO₂ emissions using conventional means set at 100%.

Evaluation by National and Local Governments

In fiscal 2022, NTT Communications obtained Class S, the highest rating for business operators demonstrating excellent energy conservation efforts and target achievement by the Agency for Natural Resources and Energy and based on the Act on Rationalizing Energy Use. Our global warming countermeasure plans for our offices in specified tenant buildings*, Otemachi PLACE, Granpark Tower, and Shiodome Building, also received Class S ratings from the Tokyo Metropolitan Government.

* Buildings in which a company maintains offices that use over 6 million kWh of electricity per year or occupy over 5,000 m² of floor space.

Thoroughly implement the 3Rs (reduce, recycle, and reuse)

Recycling Old Communications Equipment

To realize a closed-loop society, corporations are expected to recycle as much as possible in accordance with the nature of their operations. As a global ICT company, NTT Communications has for a long time recycled its old communications equipment.
Our own efforts are obviously important in recycling, and initiatives across our entire supply chain are also paramount. Waste from communications facilities is separated and reused as much as possible as a companywide policy. NTT Communications selects its waste management contractors based on their qualifications with a heavy emphasis on recycling ratios.
Thanks to these initiatives, the recycling ratio for old communications equipment remained at the high level of 99.9% in fiscal 2022.

Appropriate and Efficient Management of Water Resources

Water resources are essential for the survival of humans and other living organisms. However, the growing world population and economic development have led to increased water demand and water pollution.
In line with the NTT Group’s commitment to the appropriate and efficient management of water resources, we use valuable water resources properly while also reducing our water consumption.
For example, we recycle and reuse cooling water for air conditioners at our data centers and have water-saving toilets in our main office buildings. We are also developing a system for predicting water demand as part of social infrastructure using ICT in order to address water resource issues.

NTT Group’s commitment to the appropriate and efficient management of water resources (Business Activity 9, external site)

Contribution to Biodiversity Using ICT

Providing ICT Solutions for Sustainable Agriculture and Bringing Back the Crested Ibis

Since April 2022, we have been conducting a demonstration experiment in Niigata Prefecture’s Sado City, a site designated as a Globally Important Agricultural Heritage System, to promote rice farming in rice terraces with reduced or no pesticides and chemical fertilizers, which is contributing to the restoration and co-existence of ecosystems such as the crested ibis, by utilizing and verifying aerial drone photography, paddy weeding robots, and ICT-based advanced water management systems.

In Sado City, the population is aging rapidly and the use of pesticides and chemical fertilizers is increasing in order to boost agricultural productivity. At the same time, co-existence with the local ecosystem of living creatures including the Japanese crested ibis, designated as a special natural treasure, has become a major issue. Therefore, we have introduced various agricultural ICT solutions that can be introduced to terraced rice fields to lower costs, reduce labor, and increase profits in order to promote farming methods with reduced or no pesticides and chemical fertilizers. By expanding the application of these methods, we will contribute to increasing not only the number of people but also the number of living creatures inhabiting terraced rice fields.

Note: This demonstration has been adopted by the Smart Agriculture Production Area Development Demonstration of the National Agriculture and Food Research Organization.

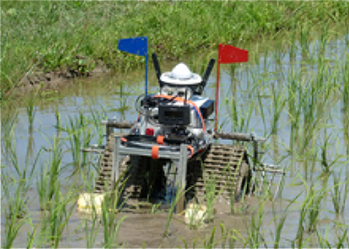

◆ Paddy weeding robot equipped with image recognition AI

◆ Crested ibis in Sado City
