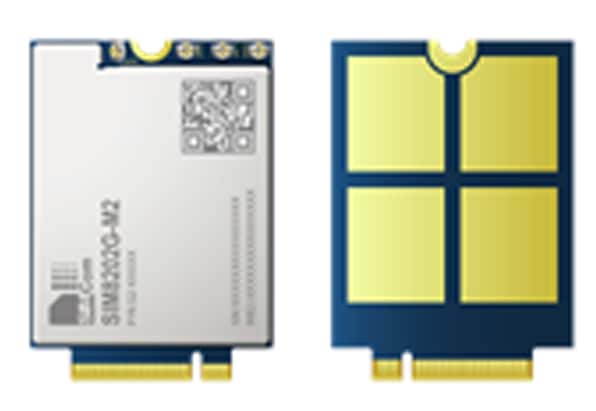

SIM8202G-M.2
SIM8202G-M.2 SIMCom Wireless Solution.,Ltd.
- 5G Sub-6G module (M.2) DL:2.4Gbps UP:500Mbps
- LTE(Cat16) DL: 1Gbps UP:200Mbps
- USB2.0/USB3.1/UART/SPI/I2C/GPS..etc
- TCP/IP/IPV4/IPV6/MQTT/HTTP…etc
- Windows Win7/Wim8/Win10/7/Linux/Android
| IOT完了年月 | 2022年3月 |
|---|
| Radio Access technology | 5G/4G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX55 | ||
| Module FW version | SIM8202G-M2_V1.2.2 | ||
| IOT completed information | 5G | Availability | S |
| Supported Band | Band n78/n79 | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28/42 | ||
| Category | Cat.16 | ||
| DL CA | 3CC | ||
| UL CA | 2CC | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | S | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB2.0/USB3.1/UART/SPI/I2C/GPS..etc | |
| Operation Temperature | -40°C 〜 + 85°C (Extended operation) | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 30mm × 42mm × 2.3mm | ||
| Weight（g） | 6.8g | ||
Update date:2022/4
