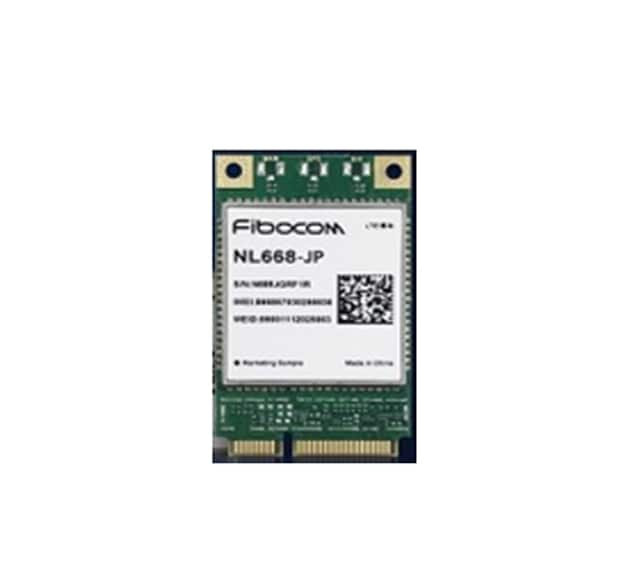

NL668-JP-MiniPCIe
NL668-JP-MiniPCIe Fibocom Wireless Inc.
- LTE／WCDMA
- Downlink LTE : 150Mbps & Uplink LTE : 50Mbps (Cat4)
- DL 64QAM support & UL 16QAM
| IOT完了年月 | 2022年9月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/MDM9207 | ||
| Module FW version | 19006.1000.08.02.00.32 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/21/28 | ||
| Category | Cat.4 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | S | |
| VoLTE | S | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | USB、SIM、UART、PCM/I2S、I2C/SPI… | |
| Operation Temperature | -30 ℃ - +75 ℃ | ||
| Form Factor | Mini PCI Express | ||
| Dimension ※L×W×H(mm) | 50.8× 29.85 × 3.4mm | ||
| Weight（g） | About 9.5 g | ||
Update date:2022/12
