T77W676

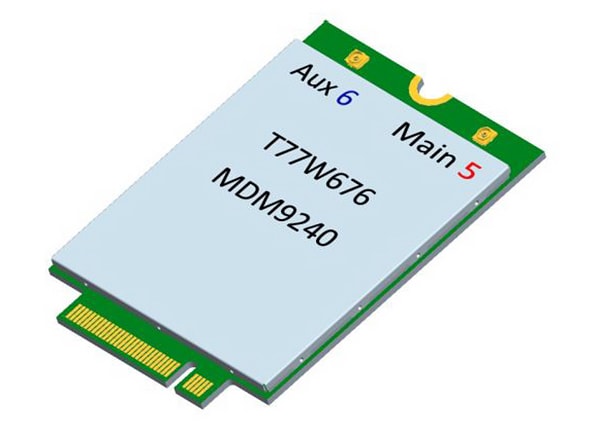

T77W676 Foxconn
- T77W676.00 is designed to enable wireless data connectivity for notebook computer or any other device compatible with the PCI Express M.2 Specification 3042 type Key.B slot.
- T77W676.00 is the data card solution that delivers wireless wide-area network (WWAN) connectivity for the LTE, UMTS (HSDPA/HSUPA/HSPA+/DC-HSPA+) and GPS/Glonass/Beidou protocols in one hardware configuration.
| IOT完了年月 | 2017年3月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/MDM9240 | ||
| Module FW version | T77W676. F0.0.0.4.7.DO.017 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/21/28 | ||
| Category | Cat.9 | ||
| DL CA | 3CC | ||
| UL CA | NS | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.14 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | USB3.0 x 1 | |
| Operation Temperature | -10°C 〜 + 55°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 42mm × 30mm × 2.3mm | ||
| Weight（g） | 6g | ||
Update date:2020/6
