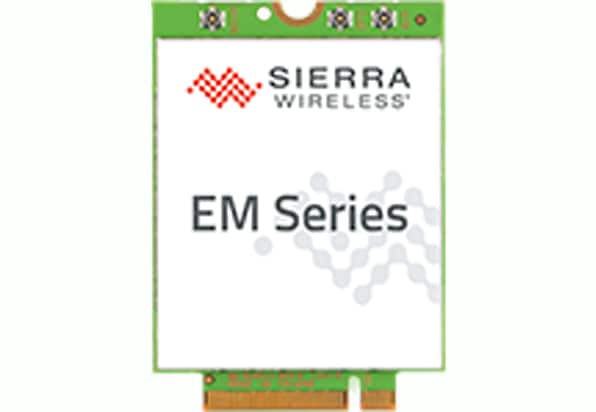

EM7565
EM7565 Sierra Wireless, Inc.
- The EM7565 module is part of the EM Series offering global 4G coverage, unprecedented LTE speeds, bandwidth, and network performance on the M.2 form factor commonly used in networking equipment.
With automatic fallback to 3G networks and integrated GNSS receiver (GPS, GLONASS, Beidou, and Galileo satellite systems supported)
| IOT完了年月 | 2019年5月 |
|---|
| Radio Access technology | 4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/MDM9650 | ||
| Module FW version | SWI9X50C_01.09.04.00 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28/42 | ||
| Category | Cat 12 | ||
| DL CA | 3CC | ||
| UL CA | 2CC | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat 24 | ||
| UL Category | Cat 6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | USB 3.0 x 1 or USB 2.0 High Speed x 1 | |
| Operation Temperature | -40°C 〜 + 85°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 37mm × 32mm × 3.6mm | ||
| Weight（g） | 6.5g | ||
Update date:2020/8
お問い合わせ先
| メーカー | |
|---|---|
| 部署／担当者 | OEM solution ／ Sierra Wireless Japan K.K |
| 電話番号 | +81-3-6717-6030 |
