ME910C1-WW

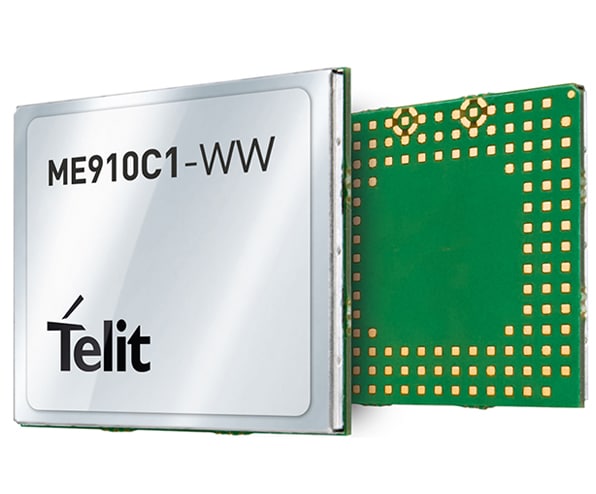

ME910C1-WW Telit Wireless Solutions
- ME910C1-WW is an LTE Cat M1/NB1 module supporting global LTE bands and 2G fallback. Uplink up to 375 kbps, downlink up to 300 kbps in Cat M1. It supports PSM and eDRX for longer battery operation. It includes optional GNSS receiver. xE910 Telit unified form factor.
| IOT完了年月 | 2019年4月 |
|---|
| Radio Access technology | LTE-M | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/MDM9206 | ||
| Module FW version | M0B.800003 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28 | ||
| Category | Cat.M1 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | S | ||
| PSM | – ※IOTは未実施だが、端末としてはサポート | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB 2.0 / Serial | |
| Operation Temperature | -40°C ～ +85°C | ||
| Form Factor | LGA | ||
| Dimension ※L×W×H(mm) | 28.0mm × 28.0mm × 2.2mm | ||
| Weight（g） | 6.0g | ||
Update date:2020/11
お問い合わせ先
| メーカー | |
|---|---|
| 部署／担当者 | Sales / Osamu Sato |
| 電話番号 | +81-3-5412-7650 |
- 商品写真および画面はイメージです。実物と若干異なる場合があります。
