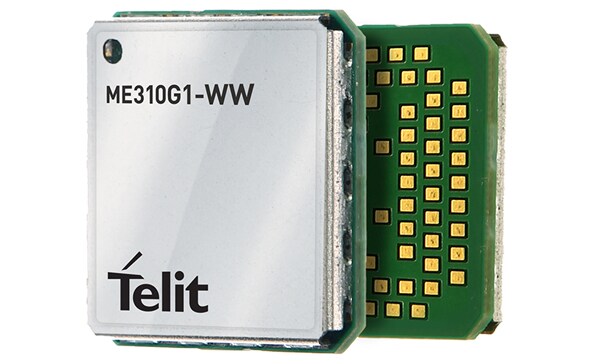

ME310G1-WW
ME310G1-WW Telit Wireless Solutions
- ME310G1-WW is an 3GPP Rel.14 NB2/Cat-M1 module supporting gloval bands and 2G fallback. One of the Industries smallest form factor with multiple technology for low power, low cost, small footprint devices. Embedded GNSS receiver
| IOT完了年月 | 2020年12月 |
|---|
| Radio Access technology | LTE-M | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/MDM9205 | ||
| Module FW version | M0C.200004 | ||
| IOT completed information | 5G | Availability | NS |
| Supported Band | NS | ||
| 4G | Availability | S | |
| Supported Band | Band 1/19 | ||
| Category | Cat.M1 | ||
| DL CA | NS | ||
| UL CA | NS | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | S | ||
| PSM | S | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB 2.0 / Serial | |
| Operation Temperature | -40°C ～ +85°C | ||
| Form Factor | LGA | ||
| Dimension ※L×W×H(mm) | 14.3mm × 13.1mm × 2.6mm | ||
| Weight（g） | 1.5g | ||
Update date:2023/03
