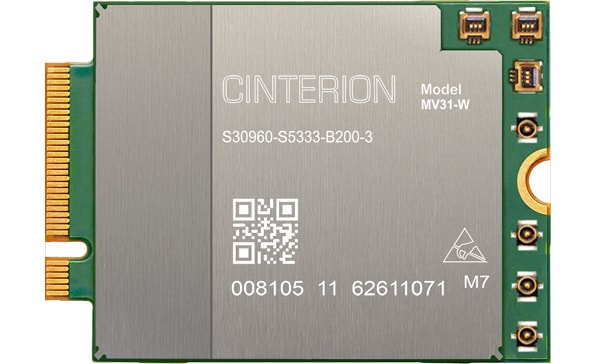

MV31-W
MV31-W Telit Wireless Solutions
- 3GPP Release 15
- Ultra High-Speed 5G with LTE Cat.20 and 3G Fallback
- Compact size (30x42mm) M.2 data card with PCIe and USB3.1
- GNSS supporting GPS, Glonass, Beidou and Galileo
- Global 5G coverage and multi MNO support on one single SKU
- Optional : 5G SA and mmWave support by firmware update, embedded eSIM
*IOT for SA and mmW not performed
| IOT完了年月 | 2021年4月 |
|---|
| Radio Access technology | 5G/4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX55 | ||
| Module FW version | T99W175.F0.1.0.0.9.DO.007 | ||
| IOT completed information | 5G | Availability | S |
| Supported Band | Band n78/n79 | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28/42 | ||
| Category | Cat.11 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | S | |
| Supported Band | Band I/VI/XIX | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB 3.1 Gen 2 × 1 USB2.0 × 1 / PCIe × 1 |
|
| Operation Temperature | -40°C 〜 +85°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 42mm × 30mm × 2.5mm | ||
| Weight（g） | 8g | ||
Update date:2024/11
