FM160-JK

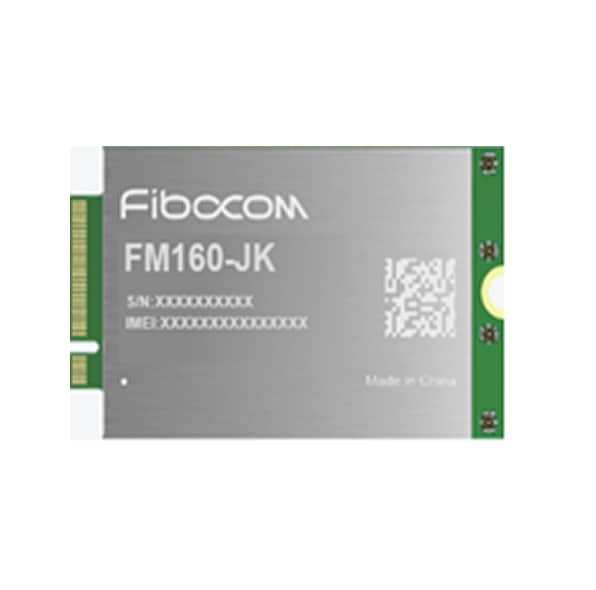

FM160-JK Fibocom Wireless Inc.
- Small ,Slim M.2 form factor (30x52x2.3mm)
- High speed data module, support 5G NR Sub6 SA/NSA, LTE Cat19
- Rx diversity for 4G/5G, up to 4x4 DL-MIMO & 2x2 UL-MIMO
- GNSS support (GPS, GLONASS, BeiDou, Galileo, QZSS)
- Low power and low cost
| IOT完了年月 | 2023年3月 |
|---|
| Radio Access technology | 5G/4G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/x62 | ||
| Module FW version | 89618.1000.00.01.06.11 | ||
| IOT completed information | 5G | Availability | S |
| Supported Band | Band n78/n79 | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | S | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | PCIe4.0、USB3.1/3.0 | |
| Operation Temperature | -40°C - +85°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 30 x 52 x 2.3 | ||
| Weight（g） | 8.3g | ||
Update date:2024/11
