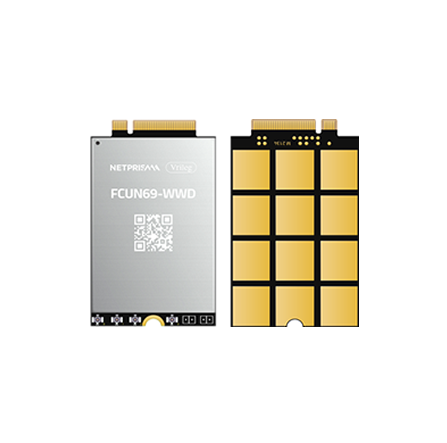

FCUN69-WWD
FCUN69-WWD NETPRISMA INC.
- NetPrisma FCUN69-WWD is a 5G module optimized specially for IoT/eMBB applications. Adopting the 3GPP Release 16
technology, it supports both 5G NSA and SA modes. Designed in an M.2 form factor.
| IOT完了年月 | 2024年9月 |
|---|
| Radio Access technology | 5G/4G/3G | ||
|---|---|---|---|
| Chipset vendor / model | Qualcomm/SDX62 | ||
| Module FW version | FCUN69WWDBL0303_JP | ||
| IOT completed information | 5G | Availability | S |
| Supported Band | Band n78/n79 | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/26/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | S | |
| Supported Band | BandⅠ | ||
| DL Category | Cat.24 | ||
| UL Category | Cat.6 | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
S | ||
| Module information | Interface | (U)SIM interfaces x 2 / PCIe Gen3 x 1 / USB 2.0 x 1 / USB3.1 Gen2 x 1 / Antenna tuner control interfaces* / COEX UART Interface* / GPIO | |
| Operation Temperature | -30°C ~ +75°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 52 x 30 x 2.3 | ||
| Weight（g） | 8.7g | ||
Update date:2024/11
