RMM-G1

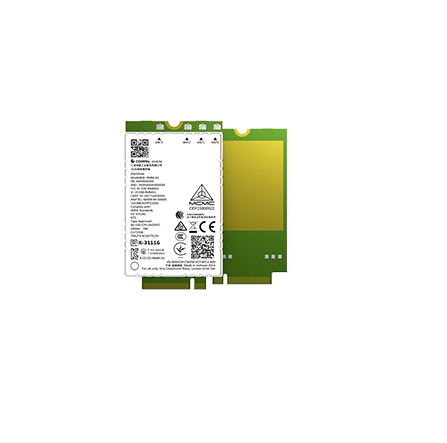

RMM-G1 Compal Electronics, Inc.
- - MTK MT6880 ARM Cortex-A55 up to 1.5 GHz
- - 5G Sub-6 FDD and TDD and SA & NSA operations
- - Downlink
‧LTE CAT19, MAX 5CC, Peak Rate: 1.6Gbps
‧5G Sub-6G: NR 2CC + LTE 4CC, Peak Rate: 4.53 Gbps - - Uplink
‧LTE CAT18, MAX 2CC, Peak Rate: 211 Mbps
‧5G Sub-6G: NR 1CC + LTE 2CC, Peak Rate: 836 Mbps - - Rich NR Carrier Aggregation
- - Driver support for Linux, Windows
| IOT完了年月 | 2024年12月 |
|---|
| Radio Access technology | 5G/4G | ||
|---|---|---|---|
| Chipset vendor / model | MediaTek Inc./T700 | ||
| Module FW version | RMM-G1.10.01.055 | ||
| IOT completed information | 5G | Availability | S |
| Supported Band | Band n28/n78/n79 | ||
| 4G | Availability | S | |
| Supported Band | Band 1/3/19/26/28/42 | ||
| Category | Cat.12 | ||
| DL CA | 5CC | ||
| UL CA | 2CC | ||
| 3G | Availability | NS | |
| Supported Band | NS | ||
| DL Category | NS | ||
| UL Category | NS | ||
| Function | CS Voice | NS | |
| VoLTE | NS | ||
| Data | S | ||
| SMS | S | ||
| eDRX | NS | ||
| PSM | NS | ||
| GPS | Standalone | S | |
| Assisted （Control Plane） |
NS | ||
| Module information | Interface | USB2.0 HS /USB3.0 SS | |
| Operation Temperature | -30°C ～+70°C | ||
| Form Factor | M.2 | ||
| Dimension ※L×W×H(mm) | 30 x 52 x 2.3 | ||
| Weight（g） | 9.3g | ||
Update date:2025/1
